TeZ-SoS32

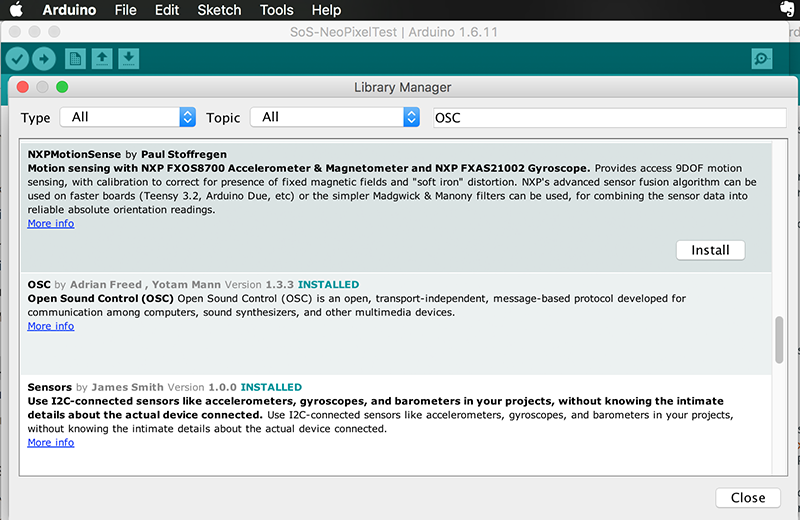

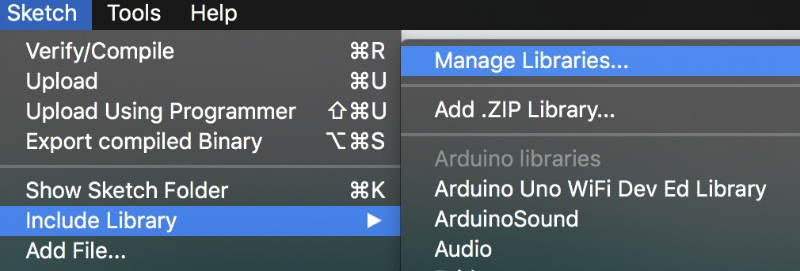

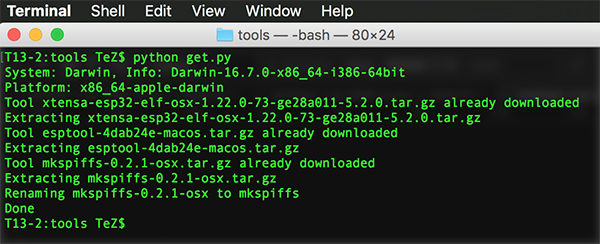

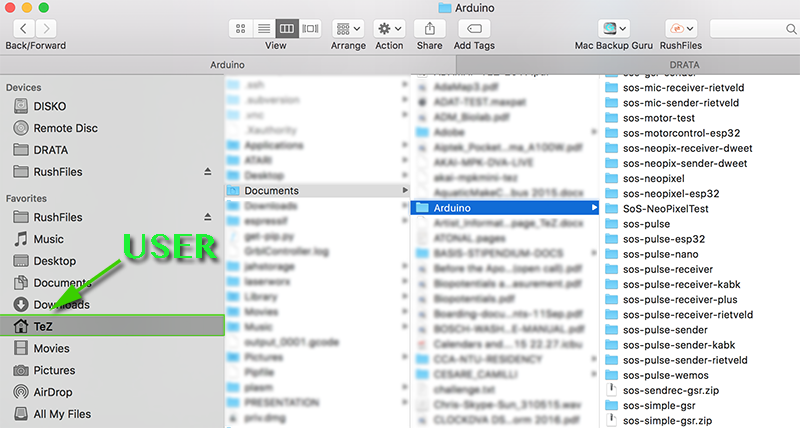

... after the installation the library files will be in their own folder under the arduino/libraries main folder

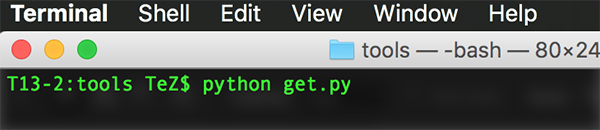

INSTALL USB TO UART DRIVER

https://github.com/espressif/arduino-esp32/blob/master/docs/arduino-ide/mac.md

/* ESP32 - BLINK TEST - TeZ / SoS / 2017  */

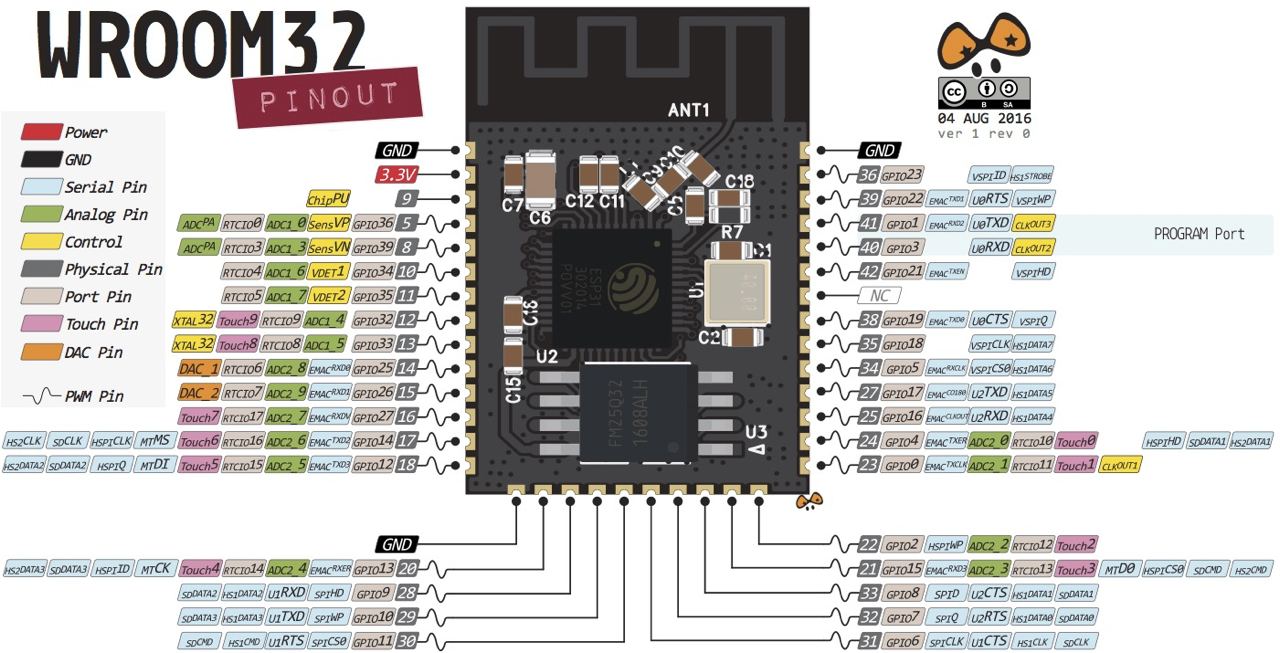

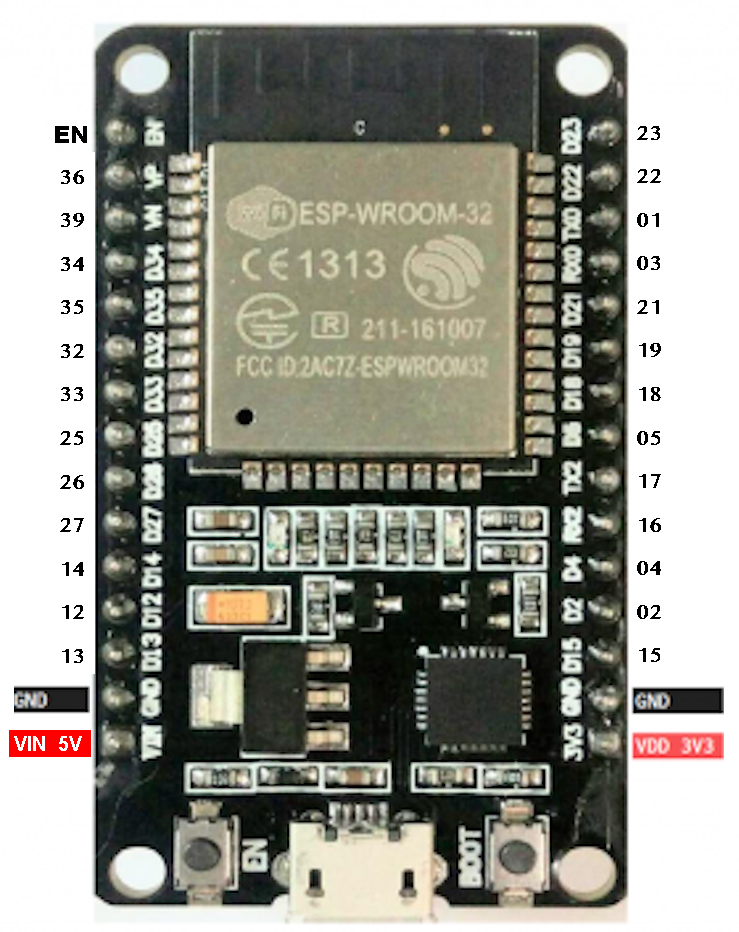

int ledPin = 2; // builtin led esp32 (wroom32)

/////////////////
void setup()
{
    pinMode(ledPin, OUTPUT);
}

/////////////////
void loop()
{
    digitalWrite(ledPin, HIGH);
    delay(500);
    digitalWrite(ledPin, LOW);
    delay(500);
}

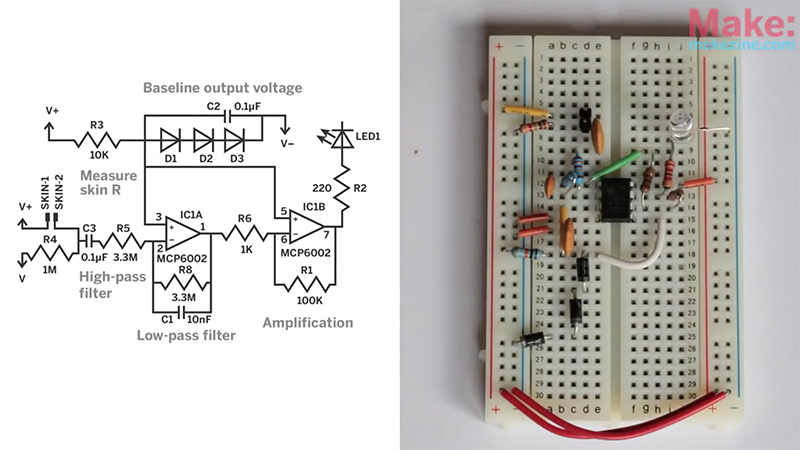

The galvanic skin response (GSR, which falls under the umbrella term of electrodermal activity, or EDA) refers to changes in sweat gland activity that are reflective of the intensity of our emotional state, otherwise known as emotional arousal.

Our level of emotional arousal changes in response to the environment we’re in – if something is scary, threatening, joyful, or otherwise emotionally relevant, then the subsequent change in emotional response that we experience also increases eccrine sweat gland activity. Research has shown how this is linked to emotional arousal.

It is noteworthy that both positive (“happy” or “joyful”) and negative (“threatening” or “saddening”) stimuli can result in an increase in arousal – and in an increase in skin conductance. The GSR signal is therefore not representative of the type of emotion, but the intensity of it.

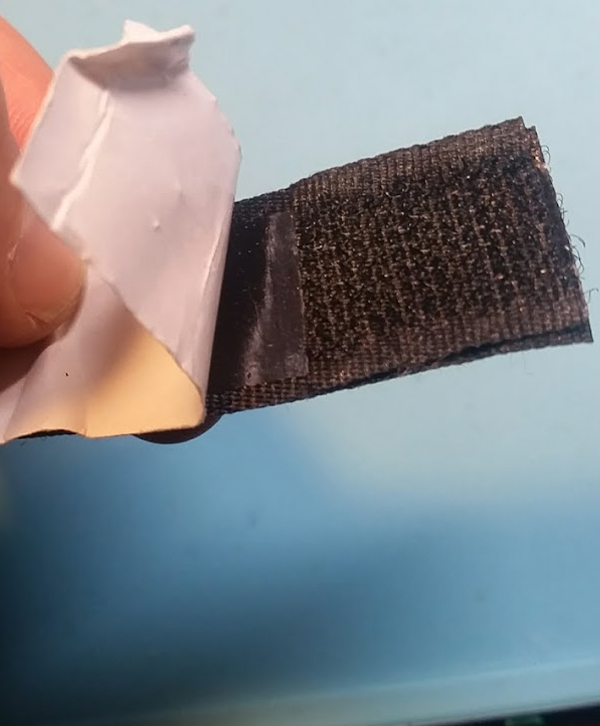

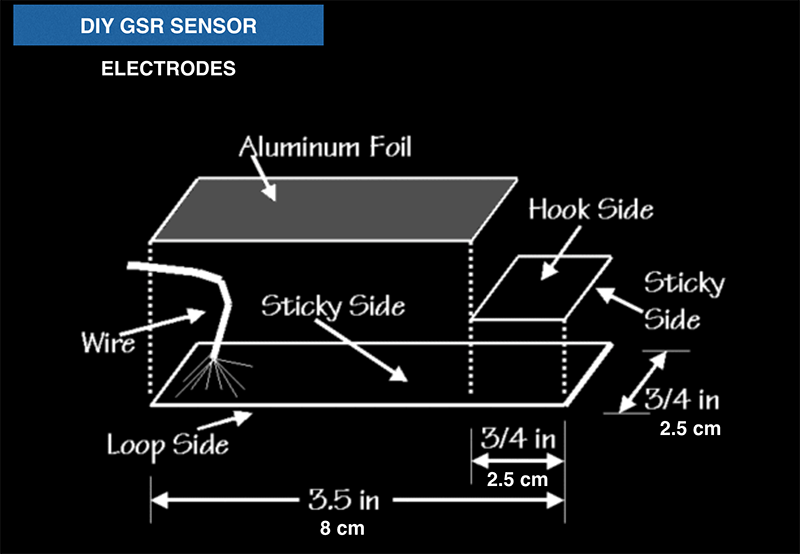

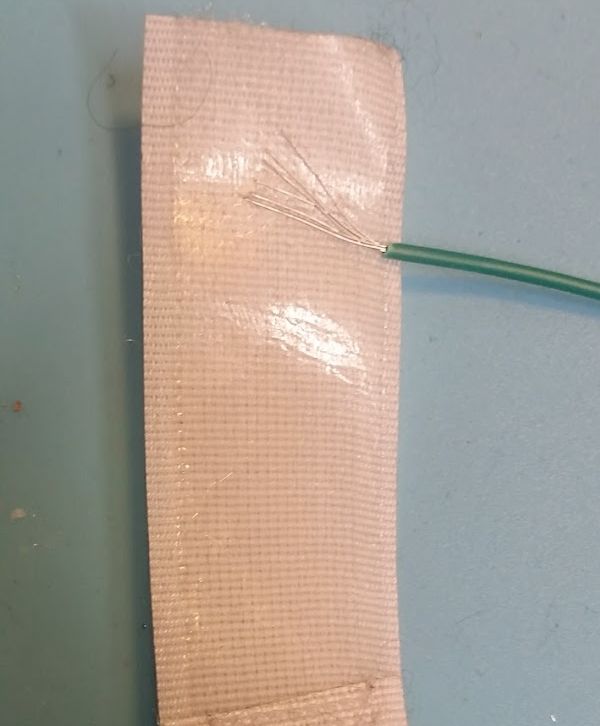

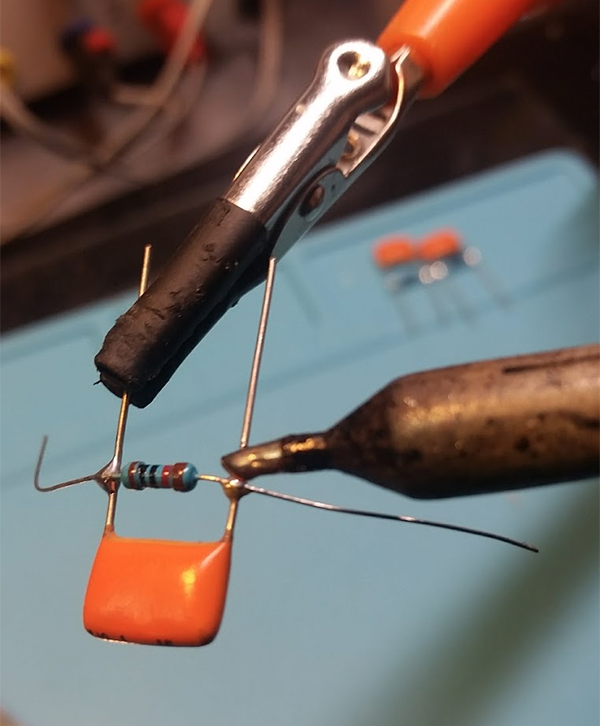

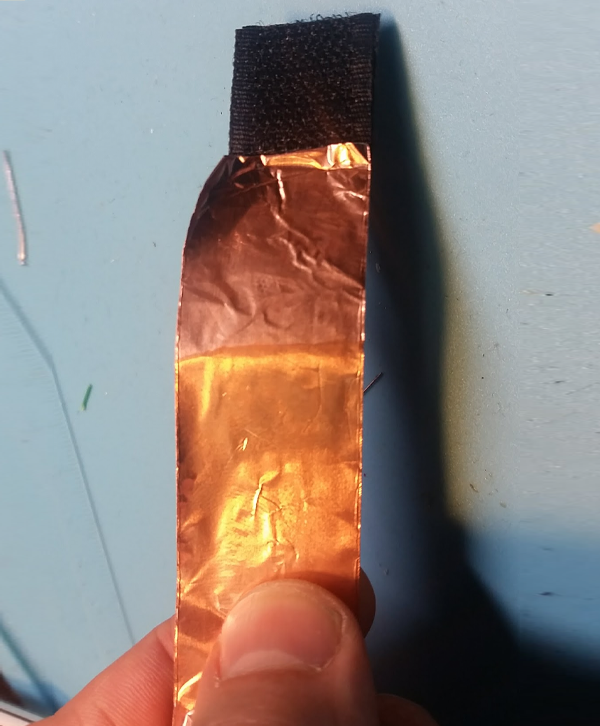

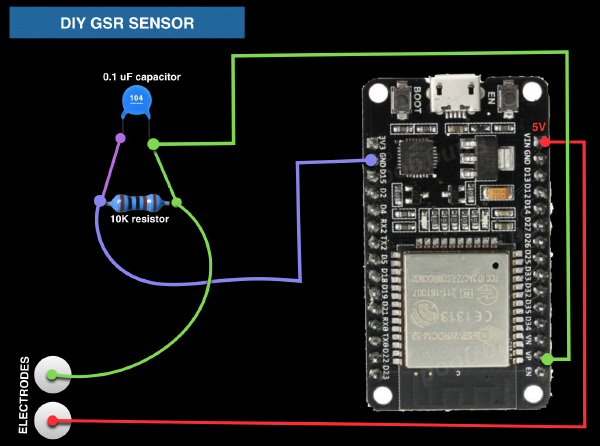

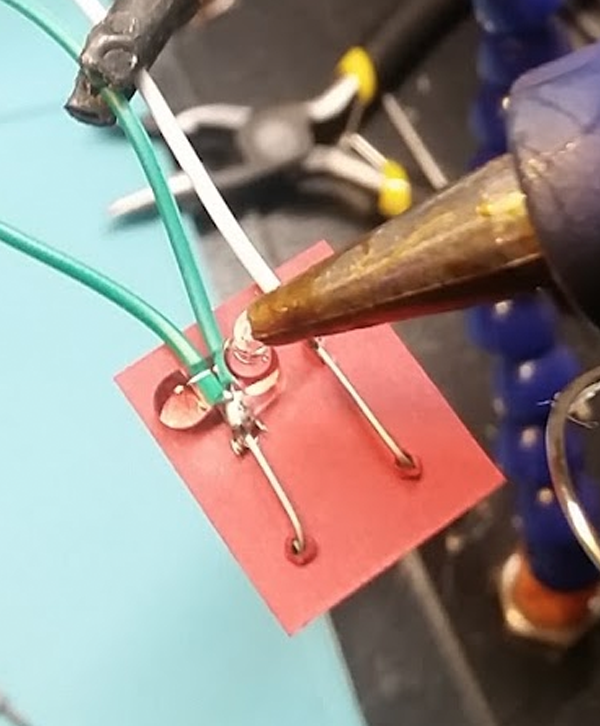

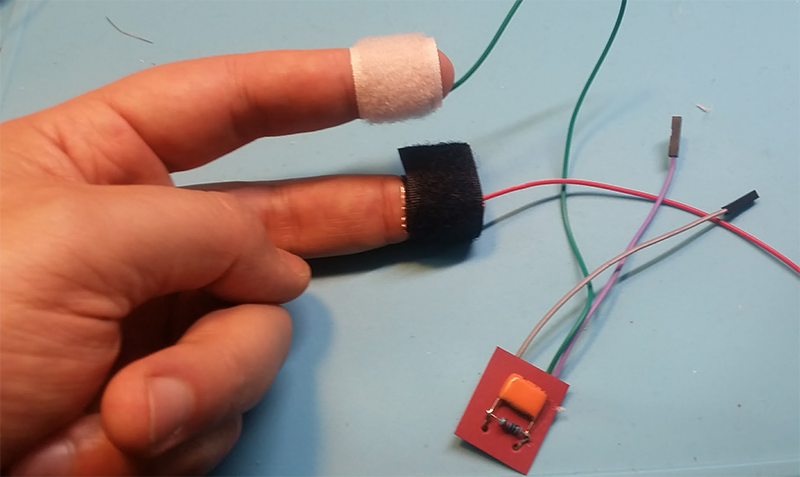

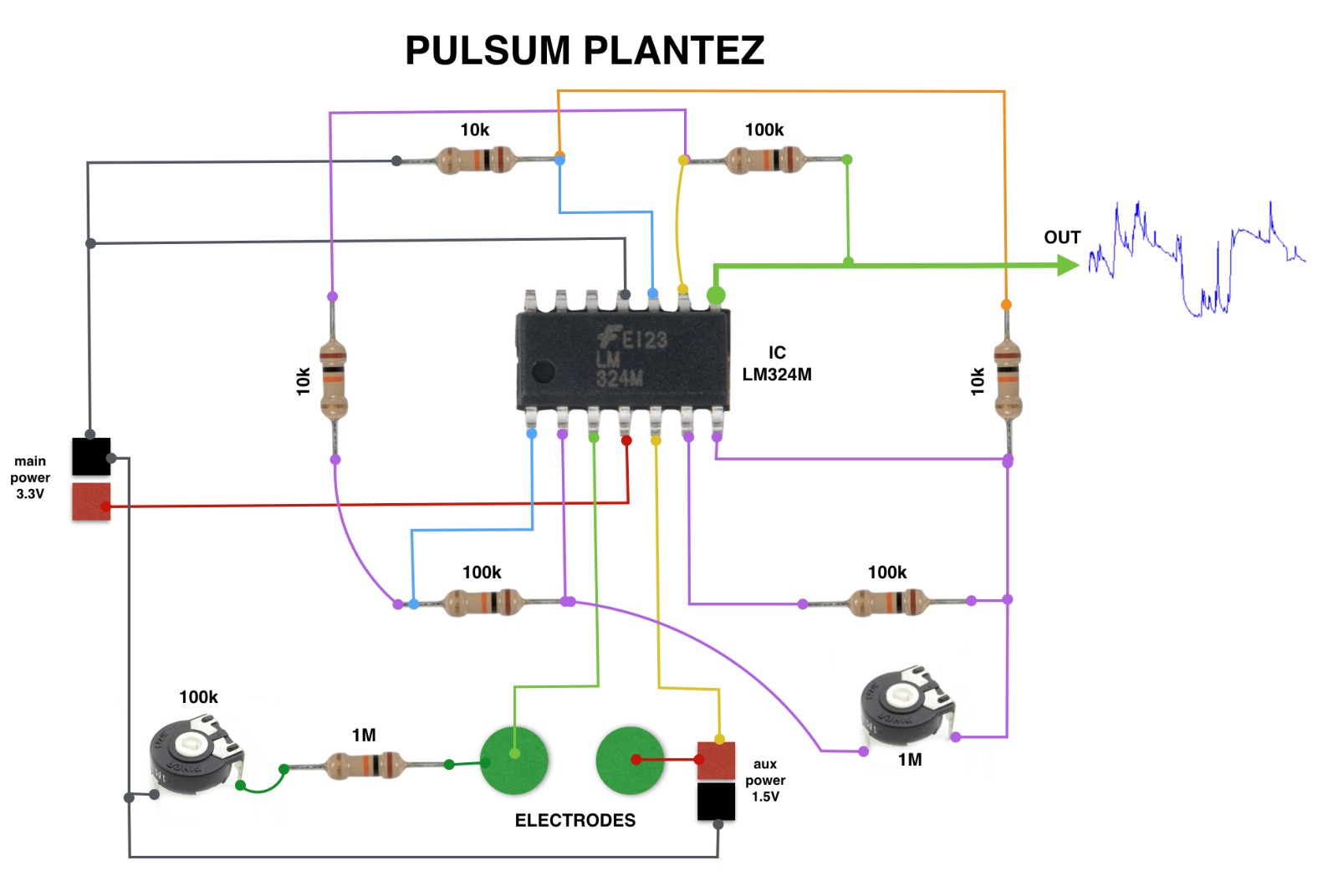

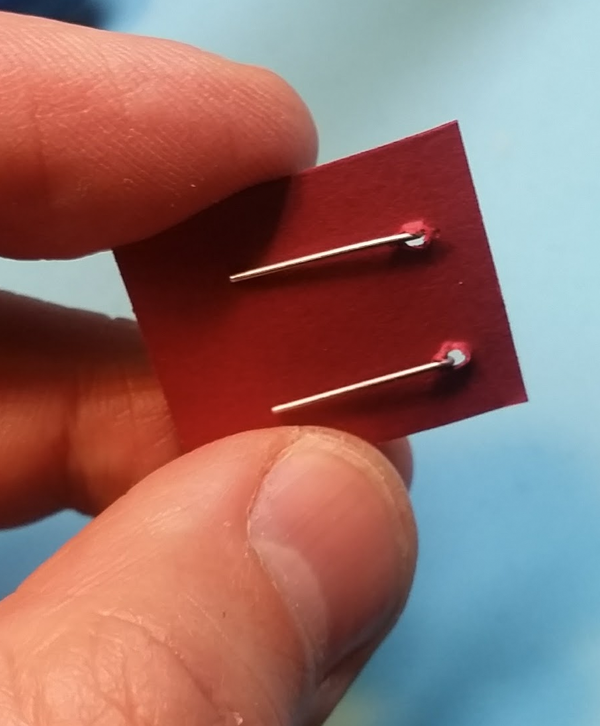

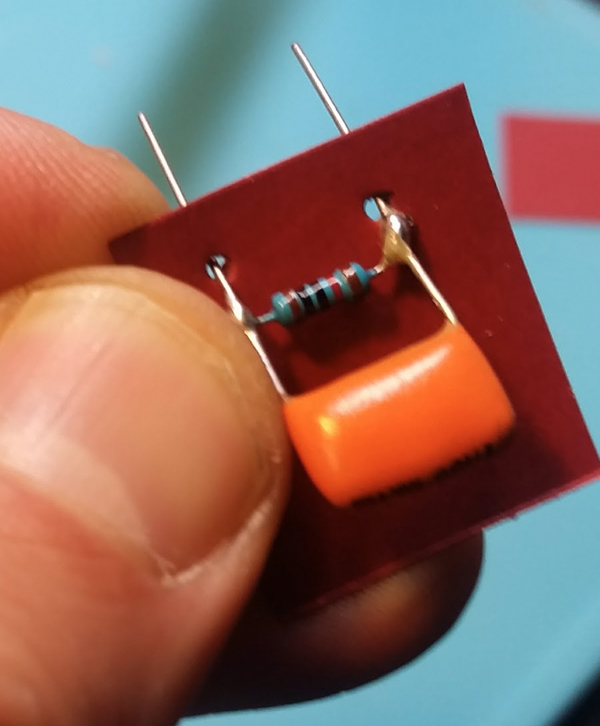

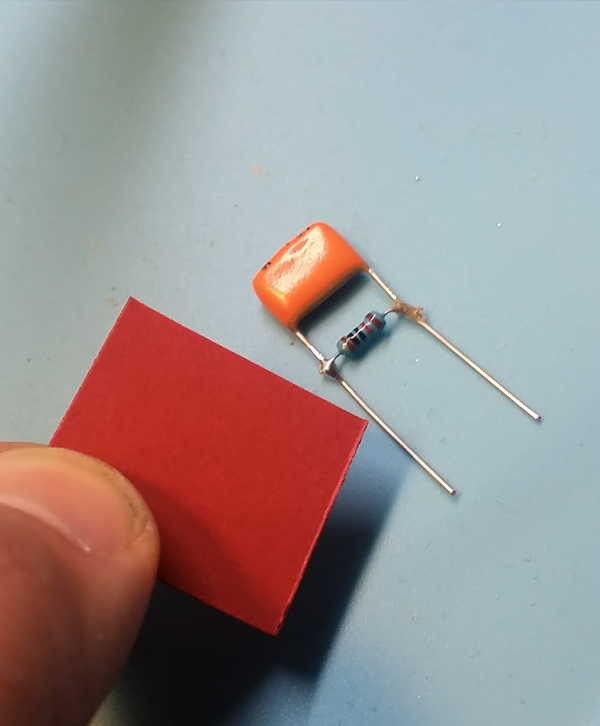

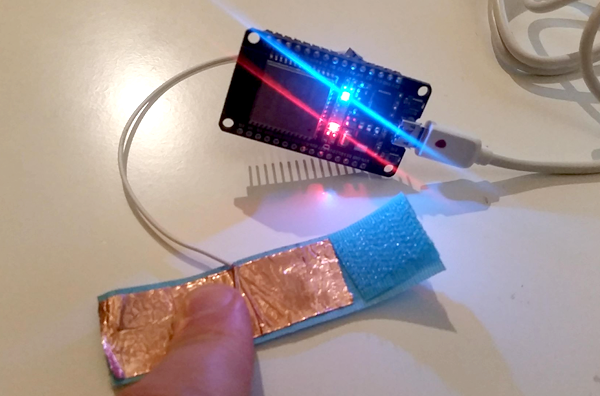

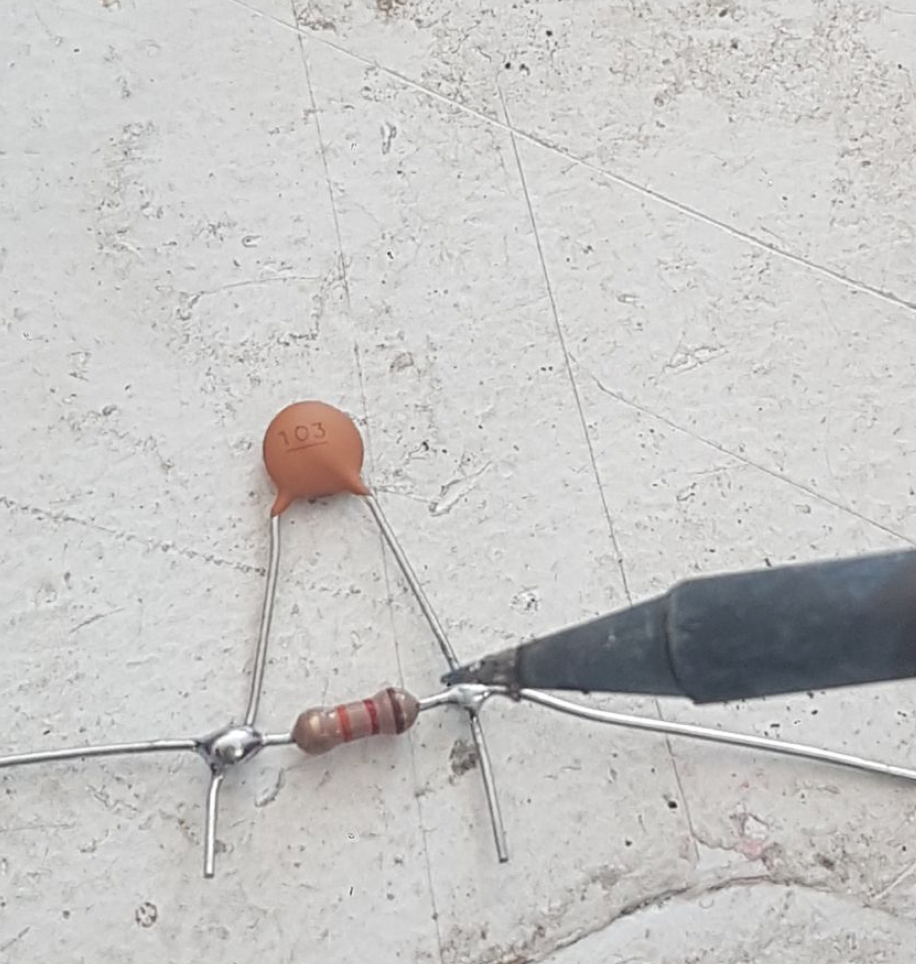

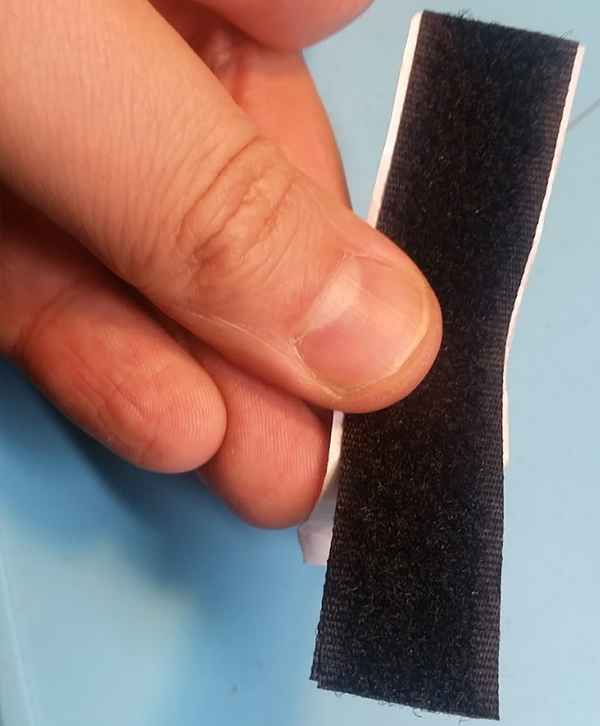

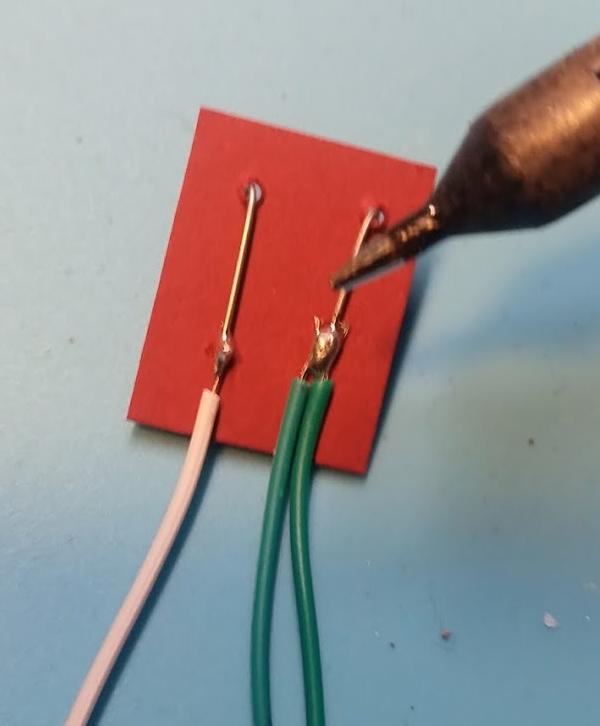

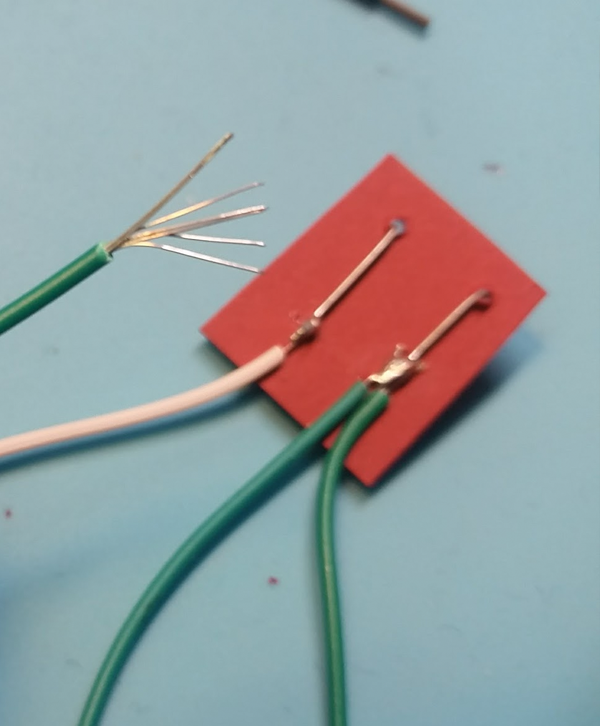

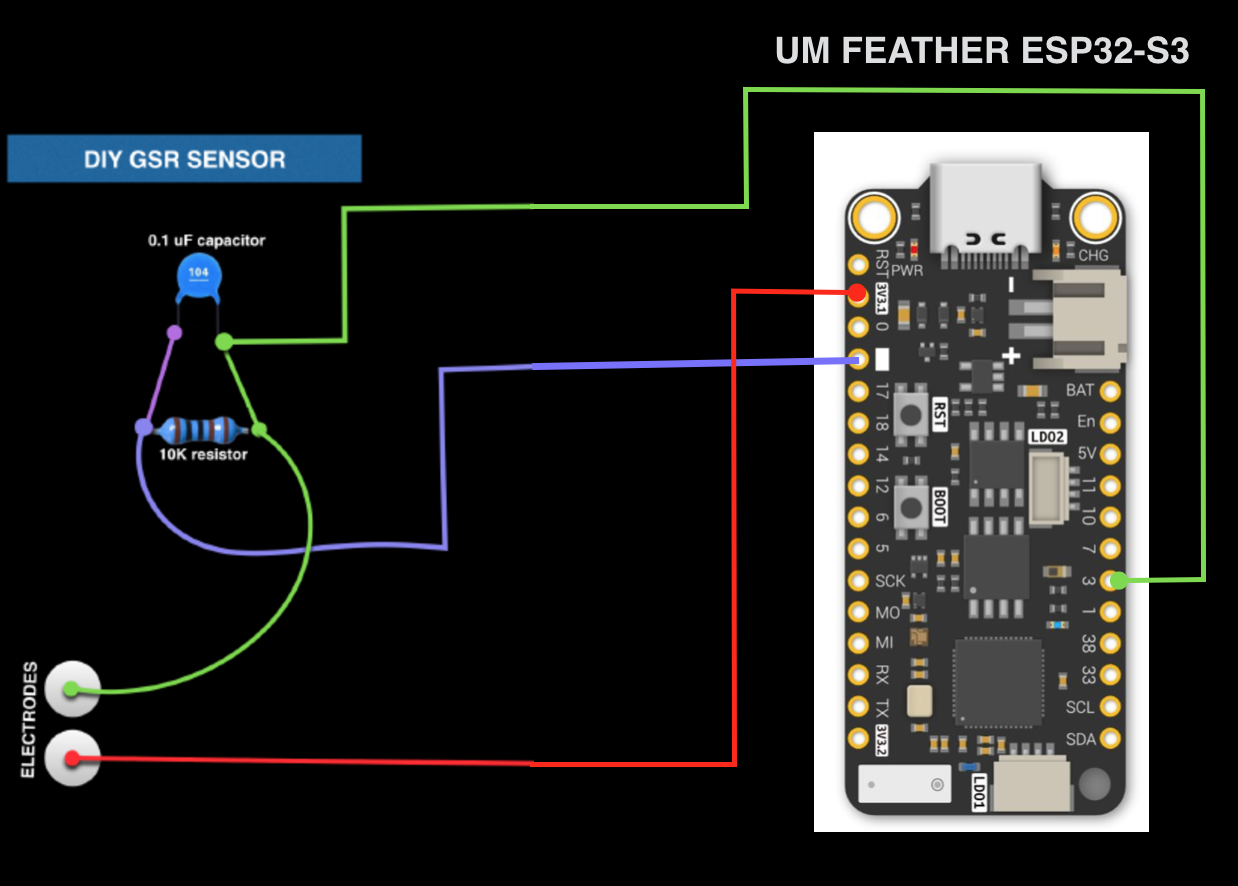

// TeZ -  diy galvanic skin response sensor  + esp 32 //

int GSR_Pin = 3; // input signal pin

///////////////////////////////
void setup(void) {
  pinMode(GSR_Pin, INPUT);
  Serial.begin(115200);
}

///////////////////////////////
void loop(void) {
float gsrvalue = analogRead(GSR_Pin);
Serial.println(gsrvalue);
delay(100);
}

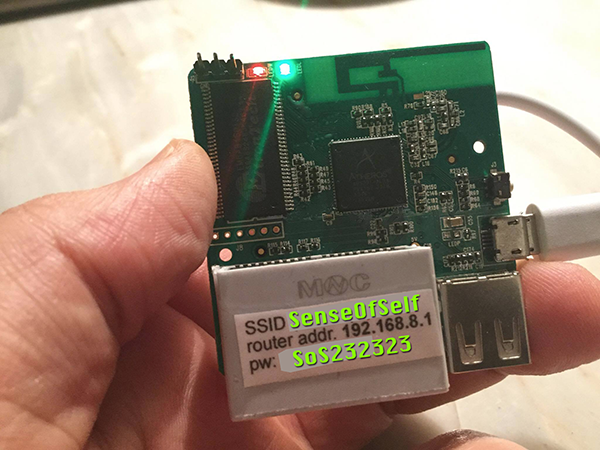

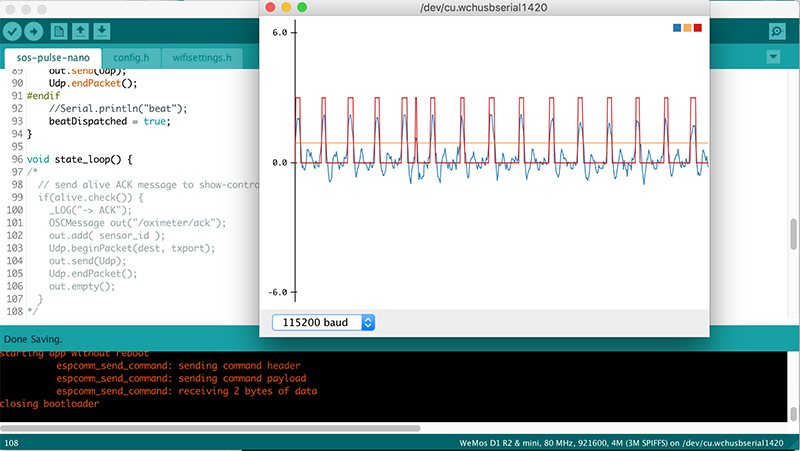

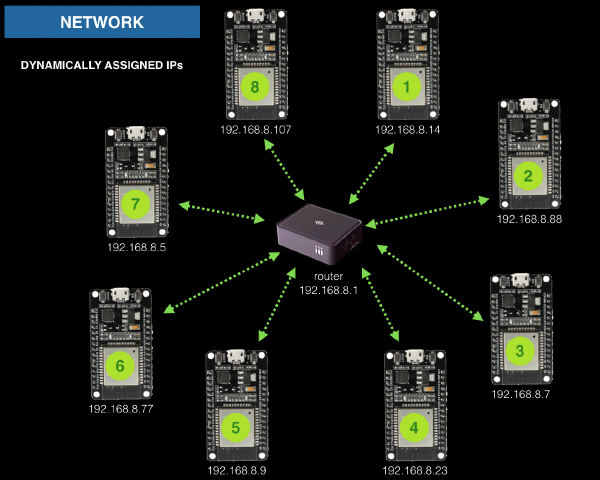

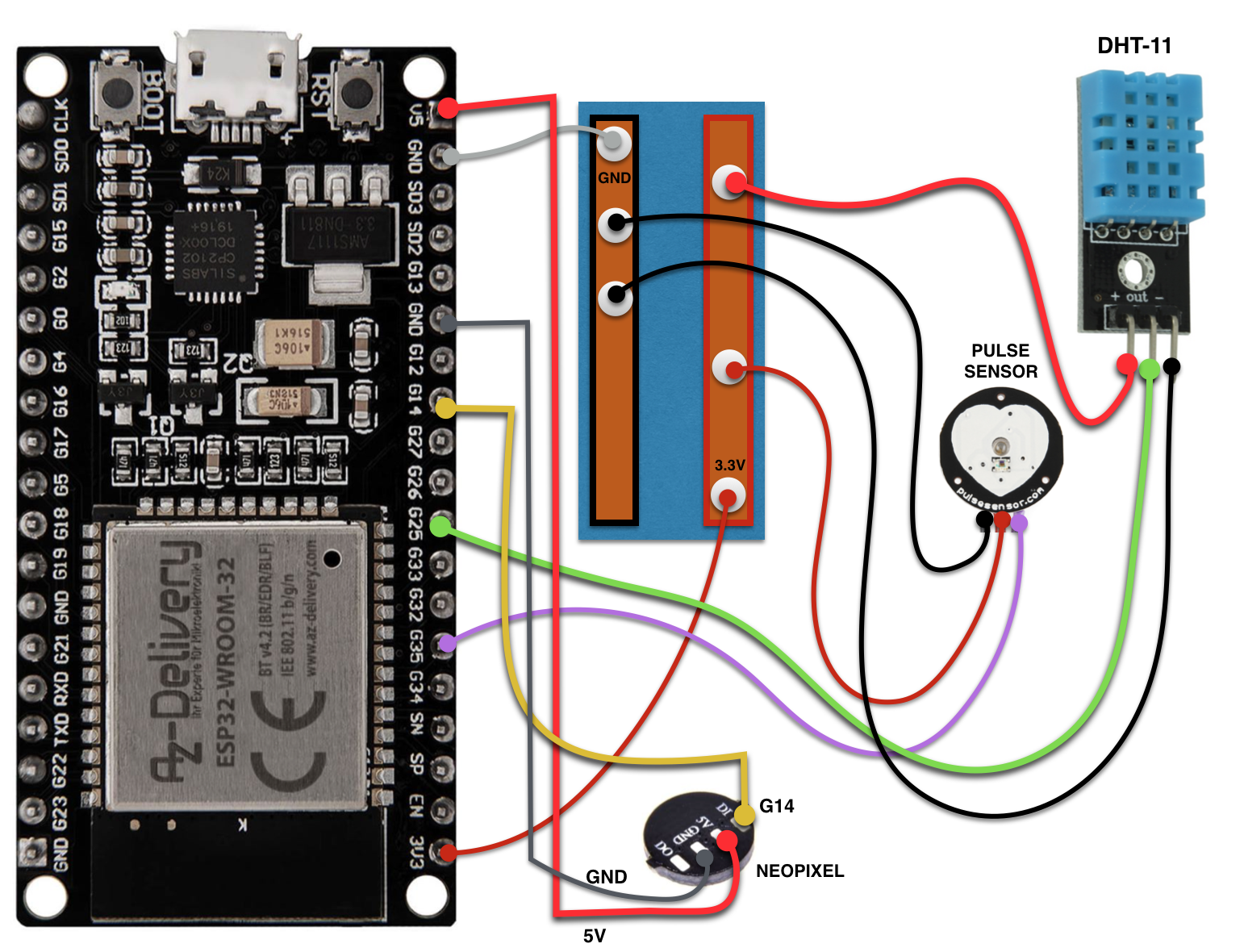

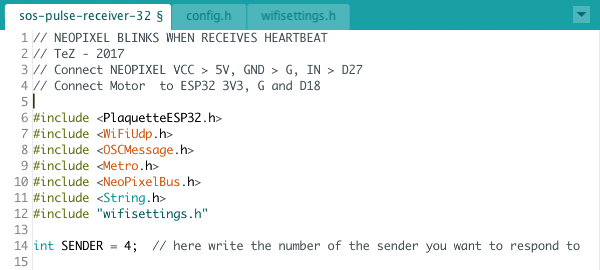

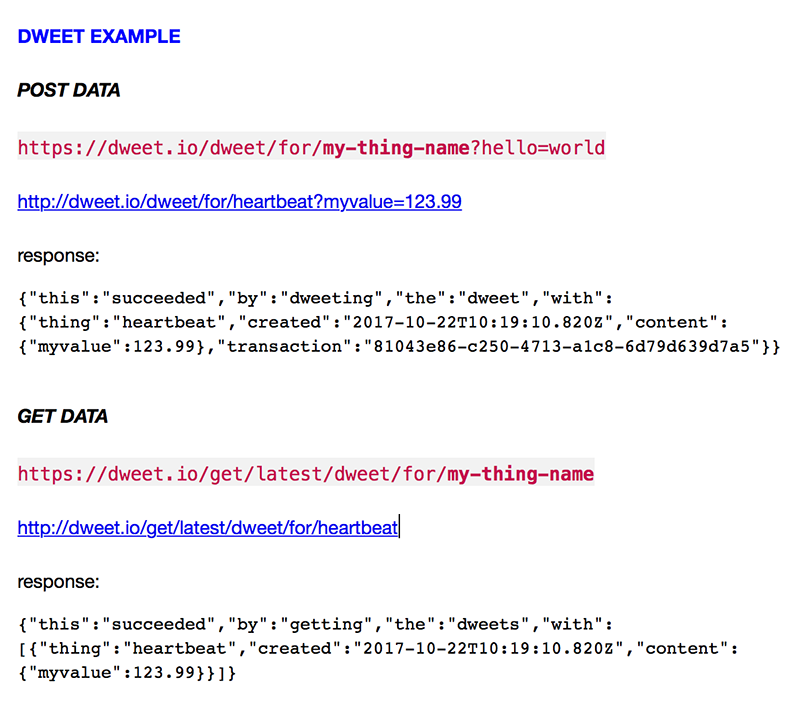

this zip file contains two folders with the arduino sketches for sending and receiving the pulse (beat) in a local network

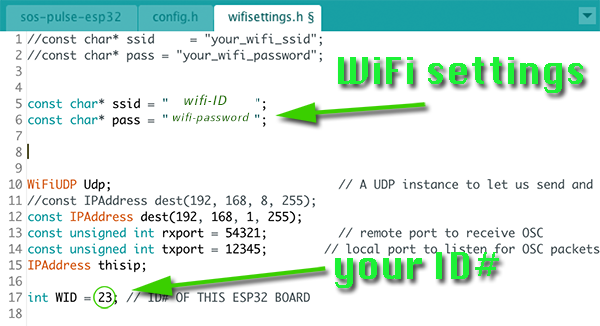

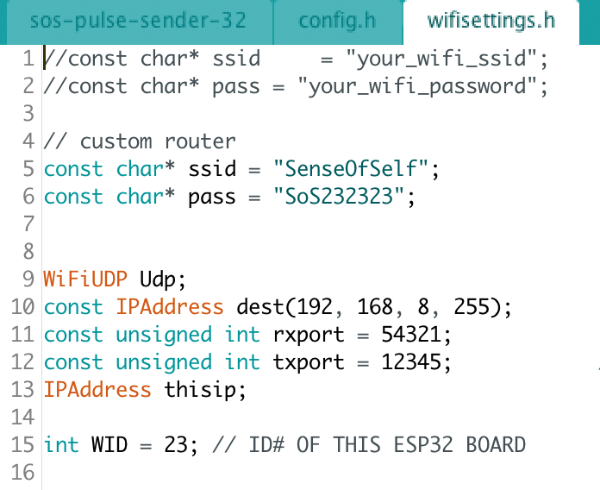

in the sos-pulse-sender sketch you just declare the ID # of the ESP32 board (that will be the SENDER)

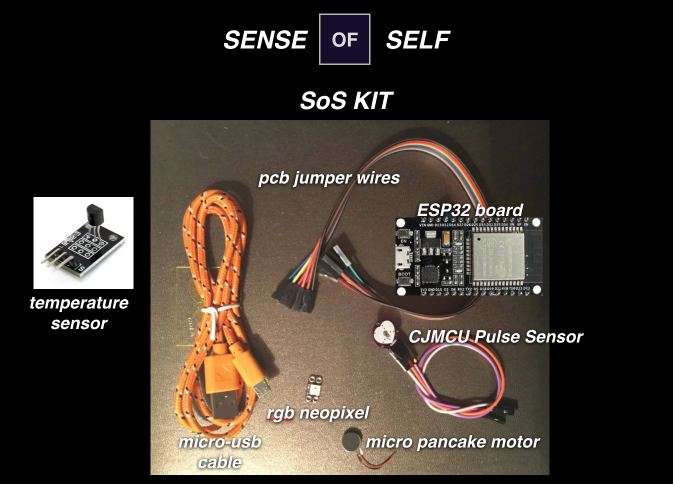

ITEM	PPU	STUDENT’s KIT
MICROCONTROLLER
Geekcreit® ESP32 Development Board WiFi+Bluetooth Ultra Low Power Consumption Dual Cores	6
SENSORS

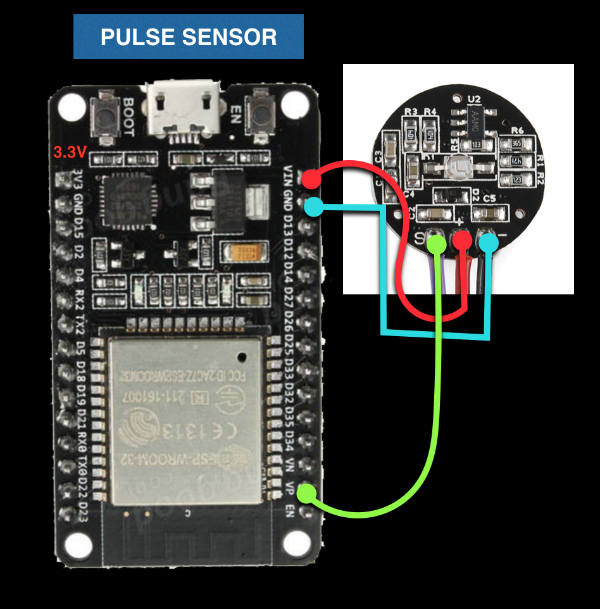

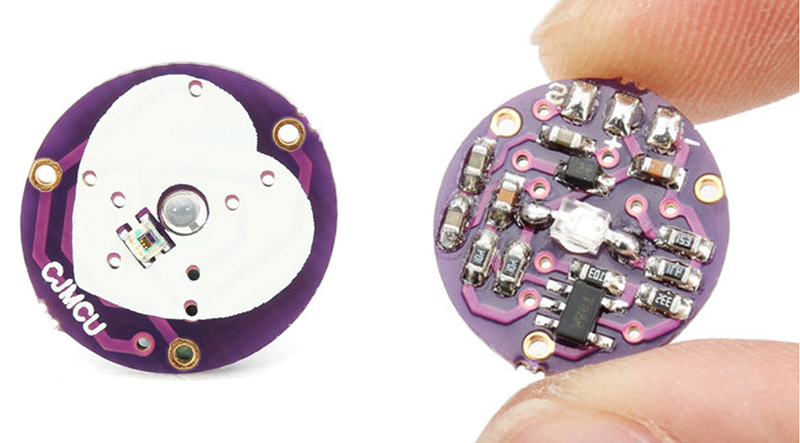

Pulse Heart Rate Sensor Module Heart Rate Monitor	3

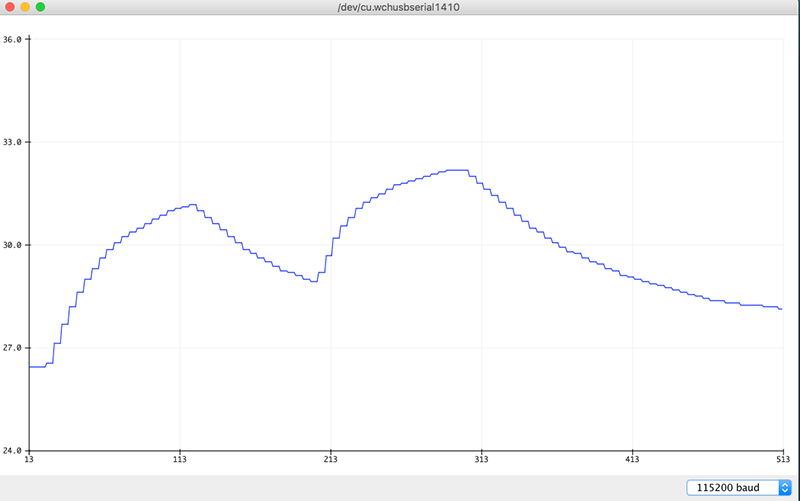

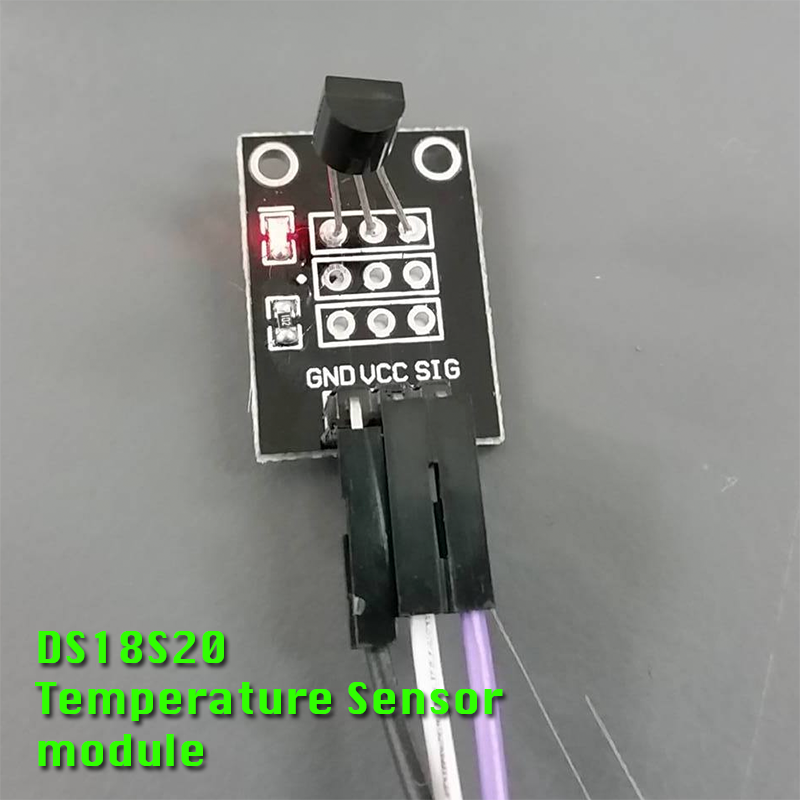

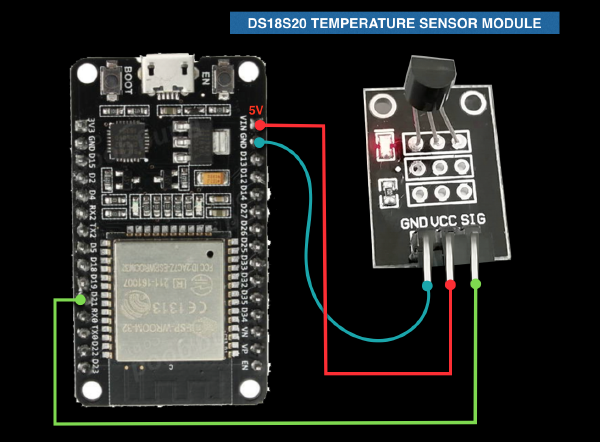

DS18B20 DC 5V Digital Temperature Sensor Module For Arduino	2
ACTUATORS

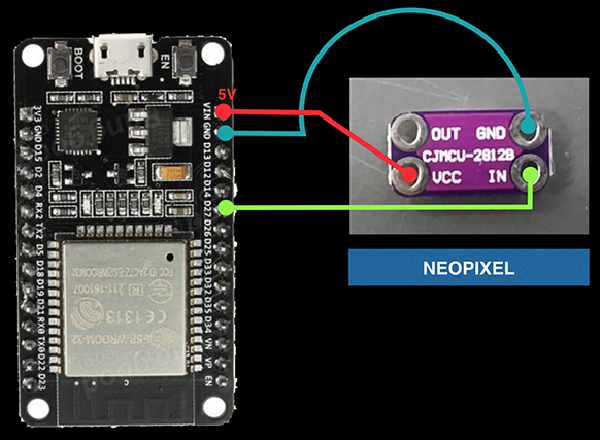

CJMCU 1 Bit WS2812 5050 RGB LED Driver Dev Board	1

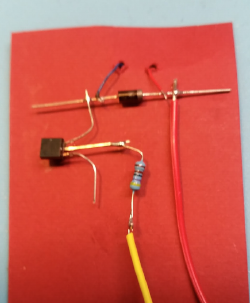

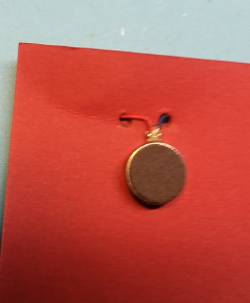

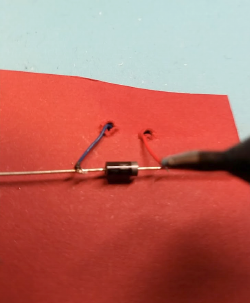

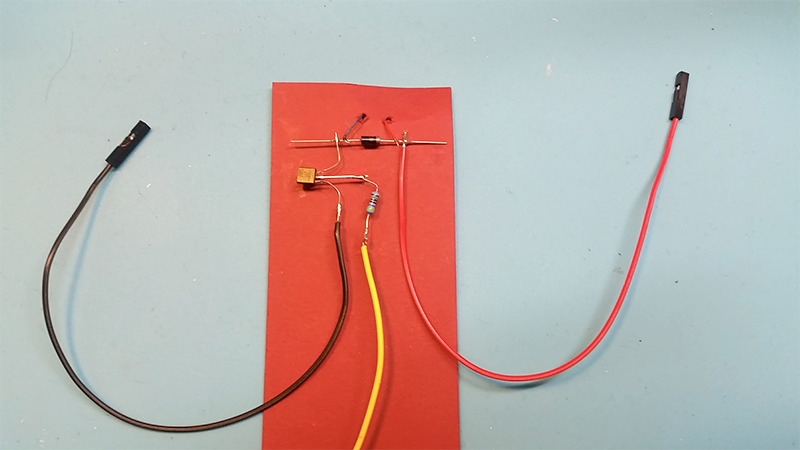

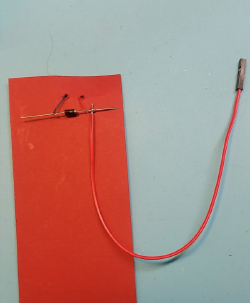

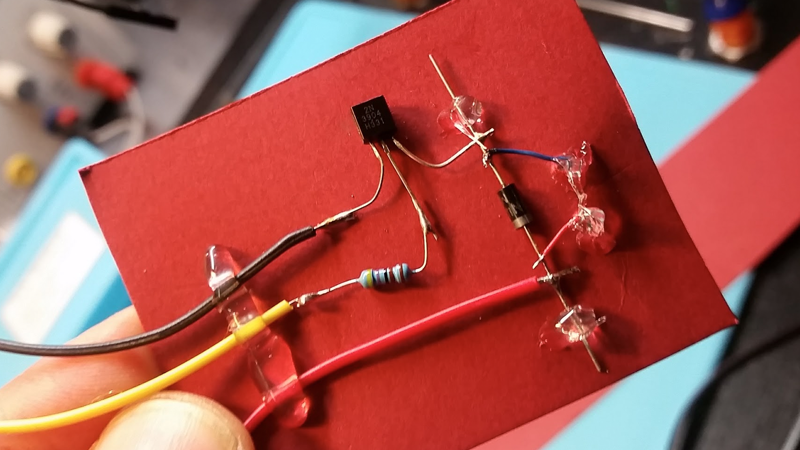

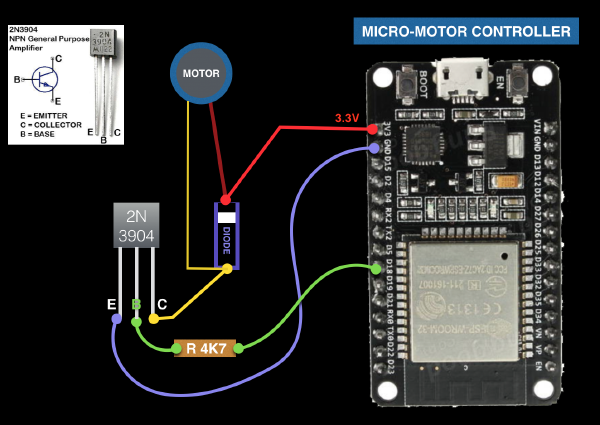

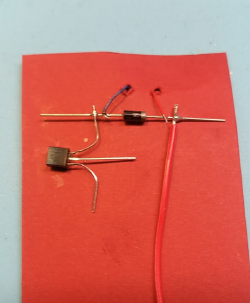

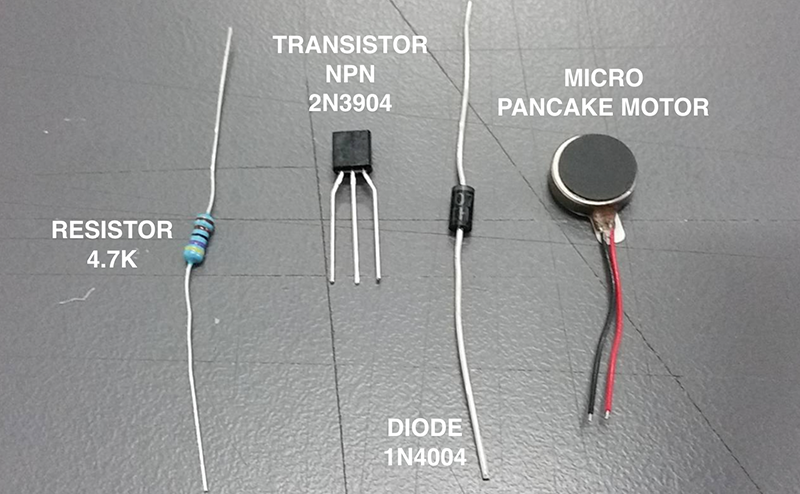

DC1.5V-3V Coin Flat Vibrating Micro Motor For Pager and Electronic Devices (10 pcs)	0,5
CABLES		TOTAL
USB micro cable	2,5	EUR 15
SOLDERING
Mini 5V 8W USB Power Electric Soldering Iron Welding Tool With LED Indicator	6

TeZ - Sens Of Self - SoS_32 [2019 ]

http://tez.it/sos
